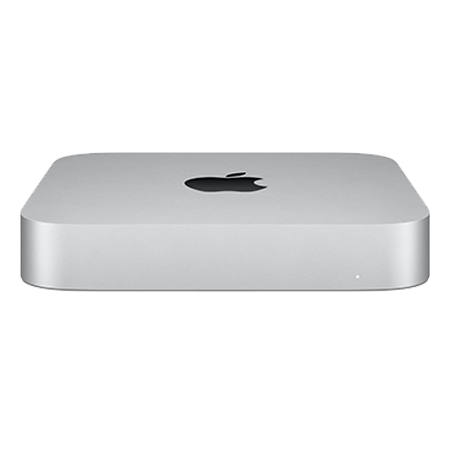

Mac Mini M1 Chip

Processor

Apple M1 chip

8-core CPU with 4 performance cores and 4 efficiency cores

8-core GPU

16-core Neural Engine

Memory

8GB unified memory

Configurable to: 16GB

Storage

256GB SSD or 512GB SSD

Video Support

Simultaneously supports up to two displays:

One display with up to 6K resolution at 60Hz connected via Thunderbolt and one display with up to 4K resolution at 60Hz connected via HDMI 2.0

Thunderbolt 3 digital video output supports

Native DisplayPort output over USB‑C
Thunderbolt 2, DVI, and VGA output supported using adapters (sold separately)

HDMI 2.0 display video output

Support for one display with up to 4K resolution at 60Hz
DVI output using HDMI to DVI Adapter (sold separately)

Audio

Built-in speaker

3.5 mm headphone jack

HDMI 2.0 port supports multichannel audio output

Connections and Expansion

Two Thunderbolt / USB 4 ports with support for:

DisplayPort
Thunderbolt 3 (up to 40Gb/s)
USB 3.1 Gen 2 (up to 10Gb/s)
Thunderbolt 2, HDMI, DVI, and VGA supported using adapters (sold separately)

Two USB-A ports (up to 5Gb/s)
HDMI 2.0 port
Gigabit Ethernet port
3.5 mm headphone jack

Communications

Wi-Fi

802.11ax Wi-Fi 6 wireless networking
IEEE 802.11a/b/g/n/ac compatible

Bluetooth

Bluetooth 5.0 wireless technology

Ethernet

10/100/1000BASE-T Gigabit Ethernet (RJ-45 connector)

Size and Weight

Height: 1.4 inches (3.6 cm)

Width: 7.7 inches (19.7 cm)

Depth: 7.7 inches (19.7 cm)

Weight: 2.6 pounds (1.2 kg)²

Electrical and Operating Requirements

Line voltage: 100–240V AC

Frequency: 50Hz to 60Hz, single phase

Maximum continuous power: 150W

Operating temperature: 50° to 95° F (10° to 35° C)

Storage temperature: –40° to 116° F (–40° to 47° C)

Relative humidity: 5% to 90% noncondensing

Operating altitude: tested up to 16,400 feet (5000 meters)

Typical acoustical performance: Sound pressure level (operator position): 5 dBA at idle³

In the Box

Mac mini
Power cord

Operating System

macOS
